(Was 312/352)
Benefits & Features
- Provides direct visual observation of process in vessels
- Welds directly to vessel
- 7 Different Sizes (not specific pipe sizes)
- 150 PSIG Rating
| Standard Specifications* | |||||||
|---|---|---|---|---|---|---|---|
| Wetted Material | Non-Wetted Materials | ||||||
| Style | Weld Pad | Gasket | Glass | Cover | Cushions | Fasteners | Non-Steam Pressure Ratings |
| FP | Carbon Steel | Neoprene | Annealed Borosilicate | Carbon Steel (Painted) | Garlock® IFG-5500 | Plated Steel | 150 PSIG @ 250°F |
| 316SS/316LSS | PTFE | 150 PSIG @ 400°F | |||||
*Optional materials are available for cover, glass, gaskets and fasteners. See matrix below or consult factory.

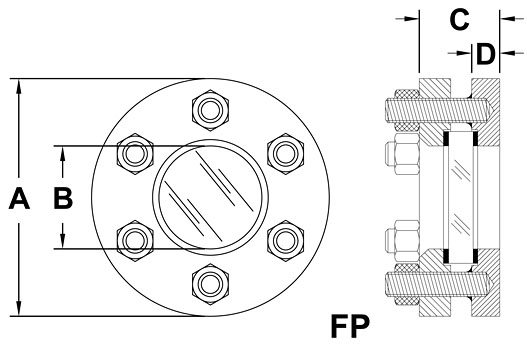

| Dimensions | ||||
|---|---|---|---|---|
| Size No. | A | B | C | D |
| 02 | 3.31” | 1.25” | 1.75” | 0.63” |
| 03 | 4.44” | 2.00” | 1.81” | 0.69” |
| 04 | 5.56” | 2.56” | 2.13” | 0.75” |
| 05 | 6.56” | 3.19” | 2.13” | 0.75” |
| 06 | 7.56” | 4.25” | 2.13” | 0.75” |
| 07 | 8.69” | 5.25” | 2.50” | 0.87” |
| 08 | 10.31” | 6.88” | 2.50” | 0.87” |
Options
- 300 PSIG, 600 PSIG Rated Units
- Radius Pads
- Dual Window
- Lens: Quartz, Fused Glass, Dual Window
Application Notes:
- Saturated Steam Service: Consult factory
- Potable Water: Carbon Steel pads are not suitable for potable water, 316LSS pads are suitable
- Vacuum Service: Contact Factory
- Gaseous Service: Not acceptable
- Compatibility: Before ordering, verify all materials are compatible with the service media(s), intermittently used cleaners, the environment, and cleaning processes in conjunction with the temperatures and pressures of the application(s) and future applications. John C. Ernst Co. does not make chemical compatibility recommendations. Compatibility is the responsibility of the user and/or specifying party.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Replacement Parts
- Please contact our Sales Dept. sales@ernstinstruments.com or call 888-943-5000

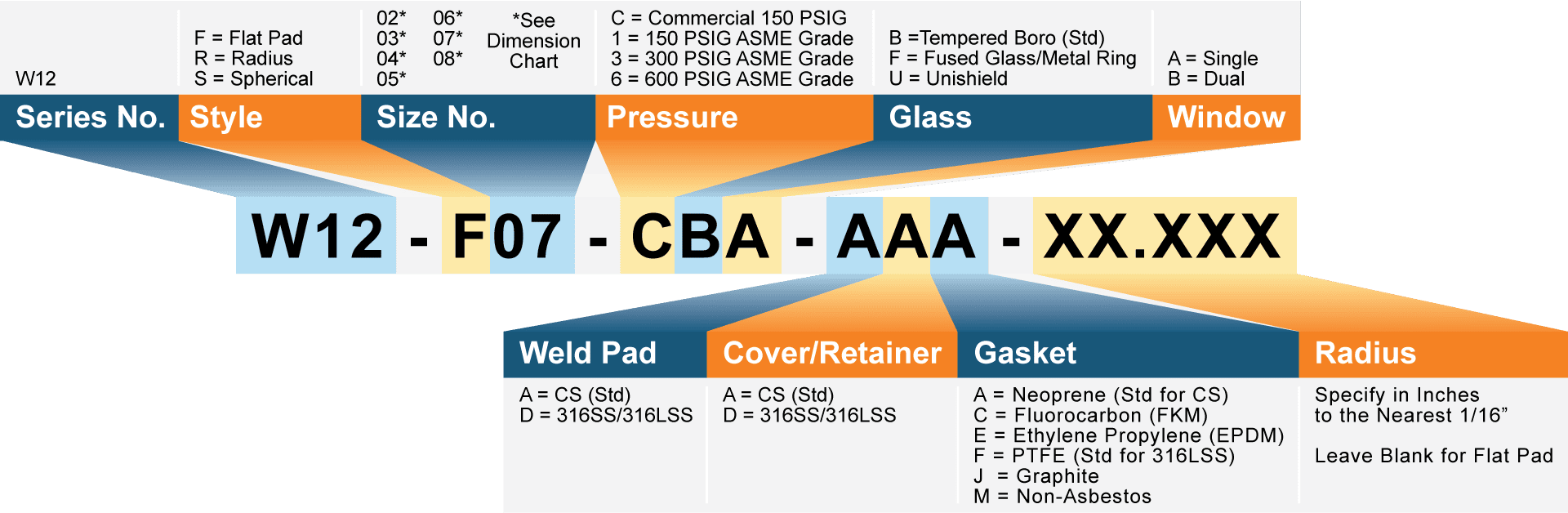

MODEL NO. MATRIX
