SERIES V11B
ARMORED GAUGE VALVES - OFFSET
Benefits & Features
- Continuous visual observation of liquid level with no power requirements (power only required for optional sensors)
- Safety Automatic Ball Checks protect against potential process material loss
- Offset configuration for maximizing visible glass in side or back connection configurations
- Product design and floating shanks allow for at least 3/8” tolerance for specified vessel centers (for 1/2″ and 3/4” only)
- Excellent valves for adding flanged union vessel connections
- Suitable for vacuum service (with Ball checks removed)
- Low maintenance
| Standard Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Style, Connection & Body | Body Material (Wetted) | Union Vessel Connections (MNPT) | Gauge Connections (1/2” FNPT) | Automatic Ball Checks | Drain & Vent Port (FNPT) | Stem Seat | Standard Pressure Ratings** (PSIG) | ||
| Non-Steam | Saturated Steam | ||||||||
| -300°F to 100°F | 750°F | Up to 434°F | |||||||

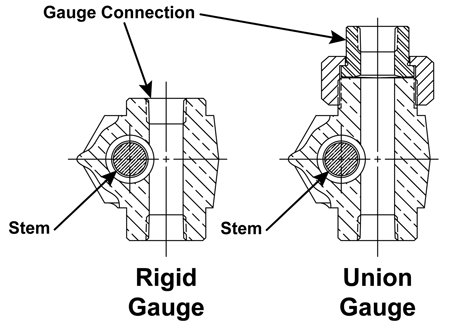

| 450-04-A | Carbon Steel | 1/2” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2620 | 350 |
| 450-05-A | Carbon Steel | 3/4” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2620 | 350 |
| 450-06-A | Carbon Steel | 1” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2620 | 350 |
| 460-04-A | Carbon Steel | 1/2” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2620 | 350 |
| 460-05-A | Carbon Steel | 3/4” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2620 | 350 |
| 460-06-A | Carbon Steel | 1” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2620 | 350 |
| 450-04-D | 316SS/316LSS | 1/2” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2755 | - |
| 450-05-D | 316SS/316LSS | 3/4” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2755 | - |
| 450-06-D | 316SS/316LSS | 1” | Rigid or Union | Yes | 1/2” Open | Integral | 4000 | 2755 | - |
| 460-04-D | 316SS/316LSS | 1/2” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2755 | - |
| 460-05-D | 316SS/316LSS | 3/4” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2755 | - |
| 460-06-D | 316SS/316LSS | 1” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 2755 | - |
*Replaceable stem seat.
**Pressure and temperature ratings are subject to the limitation of the gauges.
Standard Materials
| Standard Material | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Style, Connection & Body | Body Material (Wetted) | Union Vessel Connections (MNPT) | Gauge Connections (1/2” FNPT) | Automatic Ball Checks | Drain & Vent Port (FNPT) | Stem Seat | Standard Pressure Ratings** (PSIG) | ||
| Non-Steam | Saturated Steam | ||||||||
| 100°F | 800°F | Up to 489°F | |||||||
| 450-04-A | Carbon Steel | 1/2” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 450-05-A | Carbon Steel | 3/4” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 450-06-A | Carbon Steel | 1” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 460-04-A | Carbon Steel | 1/2” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
| 460-05-A | Carbon Steel | 3/4” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
| 460-06-A | Carbon Steel | 1” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
| 450-04-D | 316SS/316LSS | 1/2” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 450-05-D | 316SS/316LSS | 3/4” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 450-06-D | 316SS/316LSS | 1” | Rigid or Union | Yes | 1/2” Open | Integral | 2400 | 1323 | - |
| 460-04-D | 316SS/316LSS | 1/2” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
| 460-05-D | 316SS/316LSS | 3/4” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
| 460-06-D | 316SS/316LSS | 1” | Rigid or Union | Yes | 1/2” Open | Union Bonnet* | 4000 | 1308 | 600 |
Options
- Quick Closing Lever Handles with chains (1/4” turn)
- Configured for ASME steam/water service
- Double Automatic Ball Checks for vacuum applications
- Various materials (see matrix)
- Class 150 and 300 Flanged Connections
Application Notes
- Saturated Steam Service: Requires standard ball checks removed or configured with ASME steam ball checks
- Potable Water: Not suitable
- Vacuum Service: Suitable only when automatic ball checks are removed or configured with double automatic ball checks
- Compatibility: Before ordering, verify that all the materials of construction, pressures, temperatures, and any other specifications are compatible with the design, media(s), cleaning solutions, and the environment of the application and future applications. The John C. Ernst Co. does not make compatibility recommendations. Compatibility determinations, corrosion or otherwise, are the responsibility of the user and/or specifying party.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Parts
- Please contact our sales department for replacement parts. Sales@ernstinstruments.com or 888-943-5000
Hastelloy® is the registered trademark name of Haynes International, Inc.
Model Number Matrix
