SERIES H13B

MEDIUM PRESSURE ARMORED LEVEL GAUGES

Assembled End
Connected
(Illustration)

Style R Reflex
(Was model 480)

Style T Transparent
(Was model 490)

Assembled Side
Connected
(Illustration)

Benefits & Features

Maximum protected level gauges using 34mm wide glass
Pressures up to 3270 PSIG @ 100°F, Temperatures up to 800°F
Standard gauges rated up to 300 PSIG @ 421°F Saturated steam
Standard Gauges with 1/2” FNPT End Connections (in stock)
Steam Configurated Gauges for over 300 PSIG available in transparent gauges (side connected configurations in stock)
Optional 3/4” FNPT connections and 1/2” or larger flanged connections available in end, side, or back connected configurations
Reflex Gauges provide economical level indication using one glass and per chamber/section. The level of the media in the vessel appears black and the prismatic glass reflects back silver where media is not present. Light is only required in the front of the gauge.
Transparent Gauges utilize two glasses, one on each side of the chamber for direct visual observation of the vessel’s media, level, quality, and color. Light is required from the back.
Wetted Parts conform to NACE MR0175 & MR0103
All parts listed in ASTM & ASME B31.3
Carbon Steel Covers are Shrouded to Protect the Glass Edges
All Gages feature a one-piece chamber design, regardless of length

Reflex vs Transparent

Reflex Gauges provide economical level indication using one glass per section. The level of the media in the vessel appears black and the prismatic glass reflects back silver where the liquid is not present. Light is only required in the front of the gauge.
Transparent Gauges utilize two glasses, one on each side of the chamber for direct visual observation of the vessel’s liquid, level, quality, and color. Light is required from the back.

General Differences – Series H13B	Reflex	Transparent
Glasses per section	1	2
Prismatic Glass that reflects back (requires a frontal light source)	Yes	No
Clear Glass to see through (requires a rear light source)	No	Yes
Clear Liquids	Recommended	Yes
Non-clear liquids	Yes	Recommended
Higher non-steam ratings with Reflex gauges	Yes	-
Saturated steam service up to 300 PSIG	Yes	Yes
Saturated steam service up to 600 PSIG	No	Yes

Standard Non-Steam Specifications*
		Wetted Materials			Non-Wetted Materials
Style	Gauge Type	Chamber	Glass	Gasket	Cover	Cushions	Fasteners	Non-Steam Pressure Ratings
R	Reflex	Carbon Steel	Tempered Borosilicate	Garlock® IFG-5500	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	Up to 3270 PSIG @ 100°F See charts for specific ratings
R	Reflex	316SS /316LSS	Tempered Borosilicate	Garlock® IFG-5500	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	Up to 3270 PSIG @ 100°F See charts for specific ratings
T	Transparent	Carbon Steel	Tempered Borosilicate	Garlock® IFG-5500	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	Up to 2000 PSIG @ 100°F See charts for specific ratings
T	Transparent	316SS /316LSS	Tempered Borosilicate	Garlock® IFG-5500	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	Up to 2000 PSIG @ 100°F See charts for specific ratings

*Optional materials are available for cover, glass, gaskets, and fasteners. See matrix or consult factory.
Notes: Gauges or valves with flanged connections may derate the entire gauge when rated lower than the gauge.
Gauges over 165Lbs are automatically supplied with a gauge support bracket in the center or close to the center of gauge

Standard Steam Specifications*
		Wetted Materials				Non-Wetted Materials
Style	Gauge Type	Chamber	Glass	Gasket	Glass Shield	Cover	Cushions	Fasteners	Saturated Steam Pressure Ratings
R	Reflex	Carbon Steel	Tempered Borosilicate	Graphite	n/a	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	All Sizes 300 PSIG @ 421°F
R	Reflex	316SS /316LSS	Tempered Borosilicate	Graphite	n/a	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	All Sizes 300 PSIG @ 421°F
T	Transparent	Carbon Steel	Tempered Borosilicate	Graphite	Mica V4	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel	Up to 600 PSIG @ 488°F See charts below for specific ratings
T	Transparent	316SS /316LSS	Tempered Borosilicate	Graphite	Mica V4	Carbon Steel (Painted)	Garlock® IFG-5500	Plated Steel

*Optional materials are available for cover, glass, gaskets, and fasteners. See matrix or consult factory.

Notes: Gauges or valves with flanged connections may derate the entire gauge when rated lower than the gauge.
Gauges over 165Lbs are automatically supplied with a gauge support bracket in the center or close to the center of gauge

Reflex Gauge Ratings

Reflex Gauge Ratings (PSIG)
	Non-Steam								Saturated Steam
	Borosilicate Glass						Aluminosilicate Glass		Borosilicate Glass
Glass Size	100°F	200°F	300°F	400°F	500°F	600°F	700°F	800°F	(No Shields)
1	3270	3090	2900	2700	2510	2285	2080	1870	300 PSIG @ 421°F
2	3140	2970	2790	2600	2410	2190	1990	1790	300 PSIG @ 421°F
3	3000	2860	2670	2490	2305	2100	1910	1720	300 PSIG @ 421°F
4	2880	2740	2560	2380	2205	2010	1820	1640	300 PSIG @ 421°F
5	2750	2620	2450	2270	2100	1915	1740	1560	300 PSIG @ 421°F
6	2630	2500	2340	2170	2000	1820	1650	1480	300 PSIG @ 421°F
7	2510	2380	2220	2060	1900	1730	1570	1410	300 PSIG @ 421°F
8	2390	2260	2110	1950	1800	1640	1480	1330	300 PSIG @ 421°F
9	2250	2150	2000	1850	1700	1550	1400	1250	300 PSIG @ 421°F

Notes:
Adding graphite gaskets can extend the life of the glass in steam.
Flanged connections on gauge or valves will derate the entire gauge when rated lower than the gauge.

Transparent Gauge Ratings

Transparent Gauge Ratings (PSIG)
	Non-Steam								Saturated Steam
	Borosilicate Glass						Aluminosilicate Glass		Borosilicate Glass
Glass Size	100°F	200°F	300°F	400°F	500°F	600°F	700°F	800°F	Mica Shield Protected
1	2000	1900	1770	1675	1530	1350	1220	1100	600 PSIG @ 488°F
2	1850	1780	1660	1575	1450	1275	1140	1030	600 PSIG @ 488°F
3	1750	1660	1550	1470	1350	1180	1070	960	600 PSIG @ 488°F
4	1600	1550	1450	1350	1250	1100	990	890	600 PSIG @ 488°F
5	1500	1440	1330	1250	1150	1010	920	820	550 PSIG @ 479°F
6	1350	1300	1220	1150	1050	925	840	750	500 PSIG @ 470°F
7	1250	1175	1100	1050	950	850	760	690	450 PSIG @ 459°F
8	1100	1160	1000	925	850	750	690	620	400 PSIG @ 448°F
9	1000	950	900	850	750	675	610	550	350 PSIG @ 434°F

Notes:
Saturated steam applications above 300 PSIG @ 421°F require Mica Shields and upgraded Graphite gaskets.
Adding graphite gaskets and mica shields can extend the life of the glass in all steam applications.
Flanged connections on gauge or valves will derate the entire gauge when rated lower than the gauge.

End Connected Dimensions

Standard Dimensions – End Connected
Section Size	Visible Length		Overall Length		Approximate Weight				Minimum Vessel Centers with 1/2" MNPT Close Nipples (in Inches)
Section Size	Visible Length		Overall Length		Reflex		Transparent
	Inches	MM	Inches	MM	Lbs	Kgs	Lbs	Kgs	With Series V11B Valves Rigid Gauge Conn.s*	With Series V11B Valves Union Gauge Conn.s*
11	3.750	95	5.250	133	9	4.1	109	5.9	9.375	11.875
12	4.750	121	6.250	159	10	4.5	124	6.8	10.375	12.875
13	5.750	146	7.250	184	12	5.5	130	7.7	11.375	13.875
14	6.750	171	8.250	210	13	5.9	137	9.1	12.375	14.875
15	7.875	200	9.375	238	15	6.8	155	10.0	13.500	16.000
16	9.125	232	10.625	270	17	7.7	163	11.4	14.750	17.250
17	10.250	260	11.750	298	19	8.6	186	12.7	15.875	18.375
18	11.875	302	13.375	340	21	9.5	196	14.1	17.500	20.000
19	12.625	321	14.125	359	22	10.0	217	15.0	18.250	20.750
23	13.000	330	14.500	368	23	10.5	228	15.9	18.625	21.125
24	15.000	381	16.500	419	27	12.3	248	17.7	20.625	23.125
25	17.250	438	18.750	476	29	13.2	261	20.0	22.875	25.375
26	19.750	502	21.250	540	34	15.5	279	22.7	25.375	27.875
27	22.000	559	23.500	597	37	16.8	294	25.0	27.625	30.125
28	25.250	641	26.750	679	42	19.1	109	28.2	30.875	33.375
29	26.750	679	28.250	718	44	20.0	124	29.5	32.375	34.875
36	30.375	772	31.875	810	50	22.7	130	34.1	36.000	38.500
37	33.750	857	35.250	895	56	25.5	137	37.3	39.375	41.875
38	38.625	981	40.125	1019	63	28.6	155	42.3	44.250	46.750
39	40.875	1038	42.375	1076	66	30.0	163	44.5	46.500	49.000
47	45.500	1156	47.000	1194	74	33.6	186	49.5	51.125	53.625
48	52.000	1321	53.500	1359	84	38.2	196	56.4	57.625	60.125
49	55.000	1397	56.500	1435	88	40.0	217	59.1	60.625	63.125
57	57.250	1454	58.750	1492	93	42.3	228	62.3	62.875	65.375
58	65.375	1661	66.875	1699	105	47.7	248	70.5	71.000	73.500
59	69.125	1756	70.625	1794	111	50.5	261	74.1	74.750	77.250
68	78.750	2000	80.250	2038	126	57.3	279	84.5	84.375	86.875
69	83.250	2115	84.750	2153	133	60.5	294	89.1	88.875	91.375
78	92.125	2340	93.625	2378	147	66.8	109	98.6	97.750	100.250
79	97.375	2473	98.875	2511	155	70.5	124	103.6	103.000	105.500
88	105.500	2680	107.000	2718	169	76.8	130	112.7	111.125	113.625
89	111.500	2832	113.000	2870	177	80.5	137	118.6	117.125	119.625
98	118.875	3019	120.375	3058	190	86.4	155	126.8	124.500	127.000
99	125.625	3191	127.125	3229	199	90.5	163	133.6	131.250	133.750

*Minimum centers for Stainless Steel gauges are 1/4” longer.

Side Connected Dimensions

Standard Dimensions – Side/Back Connected*
Section Size	Visible Length		Gauge Centers				Minimum Vessel Centers with 1/2" FNPT Connections (in Inches)
Section Size	Visible Length		Minimum		Maximum
	Inches	MM	Inches	MM	Inches	MM	With Series V11B Valves Offset Inside (Std)	With Series V11B Valves Offset Outside
11	3.750	95	4.529	115	15.750	400	3.029	6.029
12	4.750	121	5.527	140	16.750	425	4.027	7.027
13	5.750	146	6.259	159	17.750	451	4.759	7.759
14	6.750	171	7.527	191	18.750	476	6.027	9.027
15	7.875	200	8.650	220	19.875	505	7.150	10.150
16	9.125	232	9.474	241	21.125	537	7.974	10.974
17	10.250	260	11.083	282	22.250	565	9.583	12.583
18	11.875	302	12.690	322	23.875	606	11.190	14.190
19	12.625	321	12.690	322	24.625	625	11.190	14.190
23	13.000	330	13.509	343	25.000	635	12.009	15.009
24	15.000	381	15.777	401	27.000	686	14.277	17.277
25	17.250	438	18.025	458	29.250	743	16.525	19.525
26	19.750	502	20.099	511	31.750	806	18.599	21.599
27	22.000	559	22.833	580	34.000	864	21.333	24.333
28	25.250	641	26.065	662	37.250	946	24.565	27.565
29	26.750	679	26.815	681	38.750	984	25.315	28.315
36	30.375	772	30.724	780	42.375	1076	29.224	32.224
37	33.750	857	34.583	878	45.750	1162	33.083	36.083
38	38.625	981	39.440	1002	50.625	1286	37.940	40.940
39	40.875	1038	40.940	1040	52.875	1343	39.440	42.440
47	45.500	1156	46.333	1177	57.500	1461	44.833	47.833
48	52.000	1321	52.815	1342	64.000	1626	51.315	54.315
49	55.000	1397	55.065	1399	67.000	1702	53.565	56.565
57	57.250	1454	58.083	1475	69.25	1759	56.583	59.583
58	65.375	1661	66.190	1681	77.375	1965	64.690	67.690
59	69.125	1756	69.190	1757	81.125	2061	67.690	70.690
68	78.750	2000	79.565	2021	90.750	2305	78.065	81.065
69	83.250	2115	83.315	2116	95.250	2419	81.815	84.815
78	92.125	2340	92.940	2361	104.125	2645	91.440	94.440
79	97.375	2473	97.440	2475	109.375	2778	95.940	98.940
88	105.500	2680	105.315	2675	117.500	2985	104.815	107.815
89	111.500	2832	111.565	2834	123.500	3137	110.065	113.065
98	118.875	3019	119.690	3040	130.875	3324	118.190	121.190
99	125.625	3191	125.69	3193	137.625	3496	124.190	127.190

*For side and back connect gauges, we recommend Vessel Centers to be longer than Visible Glass Length to avoid trapping fluids in the bottom of the gauge.
Contact our Sales Dept. for back connected transparent gauge limitations and dimensions.

Configuration Options

McDonnel & Miller Low Water Cut-Offs

Gauges & Valves for McDonnel & Miller™ Low Water Cut-Offs on Steam Boilers
	McDonnel & Miller™ Low Water Cut-Offs			Choose a Gauge and a Valve set
Model No	Centers Tappings	Tappings Size FNPT	Pressure PSIG	300 WSP Reflex Armored Gage Side Connected Carbon Steel	Visible Glass	350 – 450 WSP Transparent Armored Gauge Side Connected w/ Mica Shields Carbon Steel	Visible Glass	450 WSP Armored Gauge Valves Non-Auto Ball Checks Carbon Steel	450 WSP Armored Gauge Valves ASME Ball Checks Carbon Steel
157S	11-1/2"	1/2"	150	H13B-R17-05NR-AAA-BJL-XX-13.000	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.000	10-1/4"	V11B-450-04-AXA-04U-AAJ	V11B-450-04-ABA-04U-AAJ
157S-A	11-1/2"	3/4"	150					V11B-450-05-AXA-04U-AAJ	V11B-450-05-AXA-04U-AAJ
157S-A-M	11-1/2"	3/4"	150					V11B-450-05-AXA-04U-AAJ	V11B-450-05-AXA-04U-AAJ
157S-M	11-1/2"	1/2"	150					V11B-450-04-AXA-04U-AAJ	V11B-450-04-ABA-04U-AAJ
157S-MD	11-1/2"	1/2"	50
157S-M-MD	11-1/2"	1/2"	50
157S-R	11-1/2"	1/2"	150
157S-RBP-MD	11-1/2"	1/2"	50
157S-R-M	11-1/2"	1/2"	150
157S-RL	12-3/4"	1/2"	150	H13B-R19-05NR-AAA-BJL-XX-14.250	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.250	12-5/8"
157S-RL-M	12-3/4"	1/2"	150	H13B-R19-05NR-AAA-BJL-XX-14.250	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.250	12-5/8"
1575	11-1/2"	1"	250	H13B-R17-05NR-AAA-BJL-XX-13.000	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.000	10-1/4"	V11B-450-06-AXA-04U-AAJ	V11B-450-06-ABA-04U-AAJ
193	12-3/4"	1/2"	150	H13B-R19-05NR-AAA-BJL-XX-14.250	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.250	12-5/8"	V11B-450-04-AXA-04U-AAJ	V11B-450-04-ABA-04U-AAJ
193-7B	12-3/4"	1/2"	150
193-7BM	12-3/4"	1/2"	150
193-A	11-1/2"	1/2"	150	H13B-R17-05NR-AAA-BJL-XX-13.000	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.000	10-1/4"
193-A-7B	11-1/2"	1/2"	150
193-A-7BM	11-1/2"	1/2"	150
193-A-M	11-1/2"	1/2"	150
193-B	12-3/4"	3/4"	150	H13B-R19-05NR-AAA-BJL-XX-14.250	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.250	12-5/8"	V11B-450-05-AXA-04U-AAJ	V11B-450-05-AXA-04U-AAJ
193-B-7B	12-3/4"	3/4"	150
193-B-M	12-3/4"	3/4"	150
193-D	11-1/2"	1/2"	150	H13B-R17-05NR-AAA-BJL-XX-13.000	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.000	10-1/4"	V11B-450-04-AXA-04U-AAJ	V11B-450-04-ABA-04U-AAJ
193-D-7B	11-1/2"	1/2"	150
193-D-M	11-1/2"	1/2"	150
193-G	11-1/2"	1/2"	150
193-M	12-3/4"	1/2"	150	H13B-R19-05NR-AAA-BJL-XX-14.250	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.250	12-5/8"
194	11-5/8"	1/2"	250	H13B-R17-05NR-AAA-BJL-XX-13.125	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.125	10-1/4"	V11B-450-04-AXA-04U-AAJ	V11B-450-04-ABA-04U-AAJ
194-A	12-7/8"	1/2"	250	H13B-R19-05NR-AAA-BJL-XX-14.375	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.375	12-5/8"
194-A-7B	12-7/8"	1/2"	250	H13B-R19-05NR-AAA-BJL-XX-14.375	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.375	12-5/8"
194-M	11-5/8"	1/2"	250	H13B-R17-05NR-AAA-BJL-XX-13.125	10-1/4"	H13B-T17-05NR-AAA-BJL-4X-13.125	10-1/4"
194-7B	11-5/8"	1/2"	250
194-7BM	11-5/8"	1/2"	250
194-B	12-7/8"	3/4"	250	H13B-R19-05NR-AAA-BJL-XX-14.375	12-5/8"	H13B-T19-05NR-AAA-BJL-4X-14.375	12-5/8"	V11B-450-05-AXA-04U-AAJ	V11B-450-05-AXA-04U-AAJ

*Customer to specify port NPTF size of Quick Hook-Up fittings added to Low Water Cut-off.
**Consult Sales Dept. for nipples and or assembly of valves to gauges.
McDonnell & Miller is a trademark of Zylem Inc. or one of its subsidiaries.

Options

Reflex gauges with side or back connections in 3/4” FNPT, 1/2” and larger flanged connections (contact factory)
Transparent gauges with side connections in 3/4” FNPT, 1/2” and larger flanged connections (contact factory)
Aluminosilicate glass for higher temperature ratings (contact factory)
See Matrix for standard options

Application Notes:

Saturated Steam Service: See Ratings charts or contact factory
Potable Water: Carbon Steel wetted materials are not suitable for potable water, 316SS chambers are suitable
Vacuum Service: Suitable
Gaseous Service: Not acceptable
Compatibility: Before ordering, verify all materials are compatible with the service media(s), intermittently used cleaners, the environment, and cleaning processes in conjunction with the temperatures and pressures of the application(s) and future applications. John C. Ernst Co. does not make chemical compatibility recommendations. Compatibility is the responsibility of the user and/or specifying party.

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

Replacement Parts

Please contact our Sales Dept. sales@ernstinstruments.com or call 888-943-5000

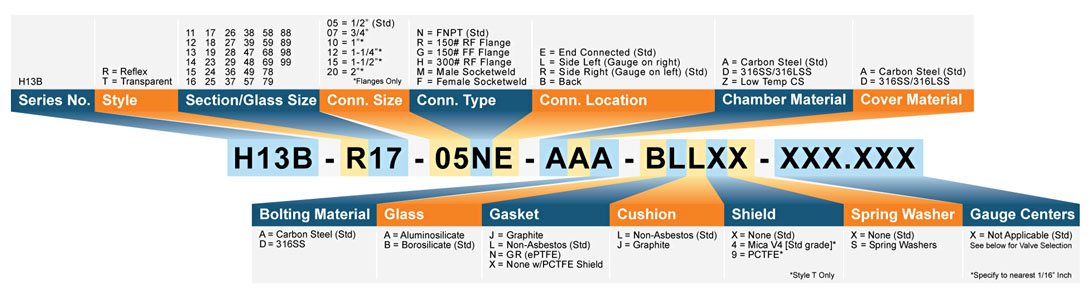

Model Number Matrix
